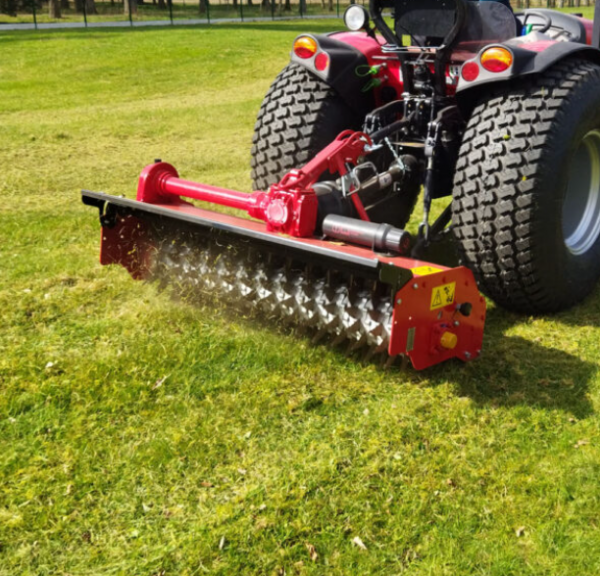

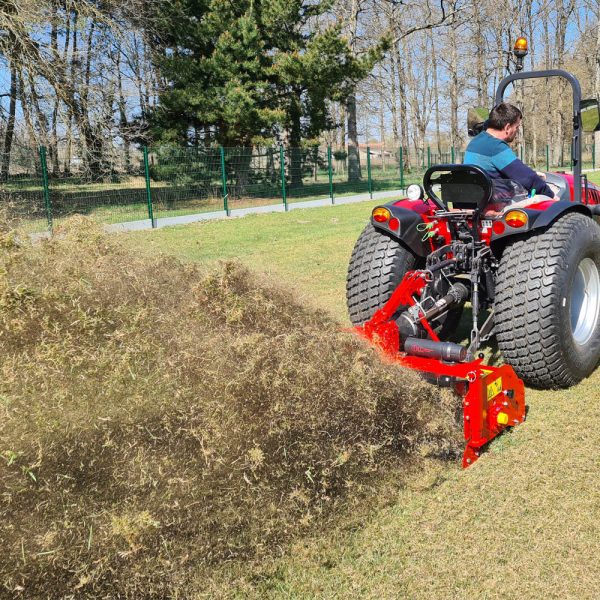

DS 130 and DS 180

Dethatching and Spiking Machines

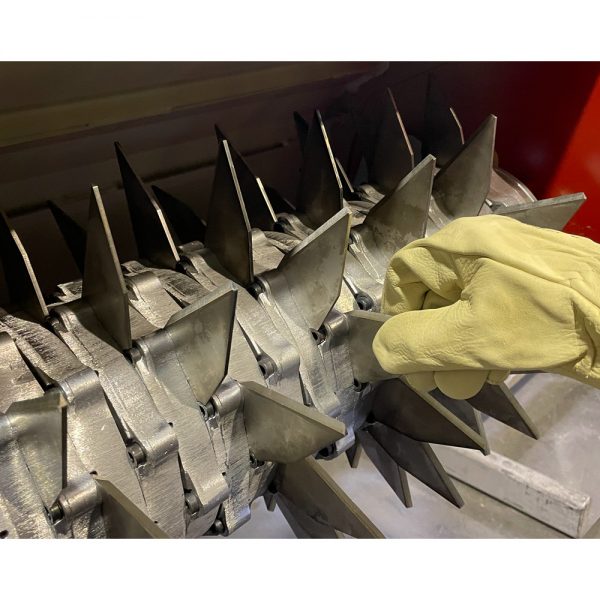

The DS 130 and 180 dethatching machines perform dethatching or scarifying operations to variable desired depths from 0 to 60 mm. They also enable aeriation of ground (spiking effect, without power take-off) or rolling. This machine is equipped with a quick-change blade system.The blades are magnetically positioned on their support and all the supports are locked by a single nut at the end of the rotor axis. .

Model Options

  • Basic version including a single front roller
  •  Additional rear roller for more precision
  • Swing option to allow optimum flexibility on hilly terrain.

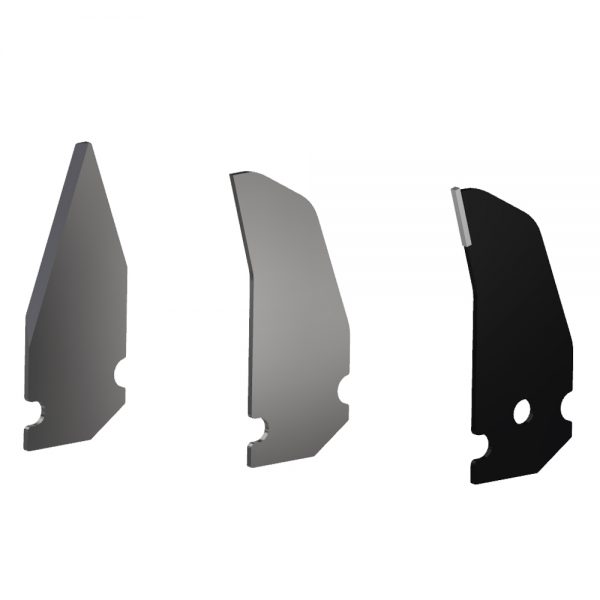

Available in 3 knife configurations:

    1. Sharpened (standard): Stainless steel knife sharpened for typical dethatching
    2. Not sharpened: Made of stainless steel knives not sharpened for more aggressive dethatching
    3. Carbide plate: Carbon steel with carbide plate for very aggressive dethatching
Category: Tag: Product ID: 107

Additional information

Height

750 mm (30")

Length

800 mm (30")

Weight

336kg

Width

1500 mm (60"

3 Point Hitch

Category 1 & 2

Number of knife support discs

53

Number of sharpened knives

159

PTO shaft rotation speed

540 RPM

Required Power

25 to 40 HP

Standard Equipment

Cast casing, Stainless steel rollers, multi position rear cover

Transmission

Oil bath chain

Work Depth Settings

Front roller with 2 positions, Rear roller with depth gauge

Working Width

1300 mm 52"
