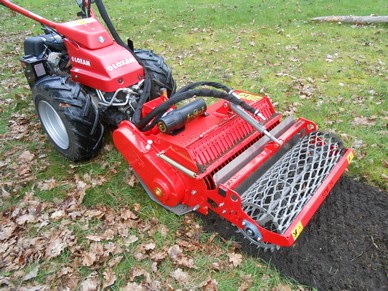

STM 75

The Stone Burier for Walk-behind Machines

The STM 75 has been designed to perform the same work as our other smaller stone buriers. The perfect machine for smaller cultivation requiremments. Adapt at burying of flints, debris, grass – top soil mixing and then rolling. The STM 75 is suitable for even the smallest walk-behind tractors on the market from 10 to 18 HP. Key features include:

  • Oversized Rotor
  • Non-panning Blades (Rotadairon Patent),
  • Unbreakable, unbendable Grate Fingers,
  • Offset Roller to avoid ridges between 2 passes,
  • High quality steel, hydraulic torque limiting system at Rotor end, improving safety for user, walk-behind tractor and the STM
Category: Tag: Product ID: 146

Additional information

Height

600mm

Length

1100mm

Weight

139kg

Width

950mm

3 Point Hitch

Category 1 & 2

PTO shaft rotation speed

540 RPM

Required Power

25 to 40 HP

Transmission

Chain

Working Width

750mm

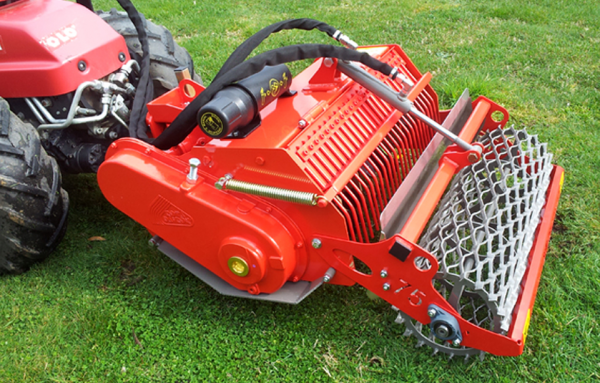

Depth control

Mechanical

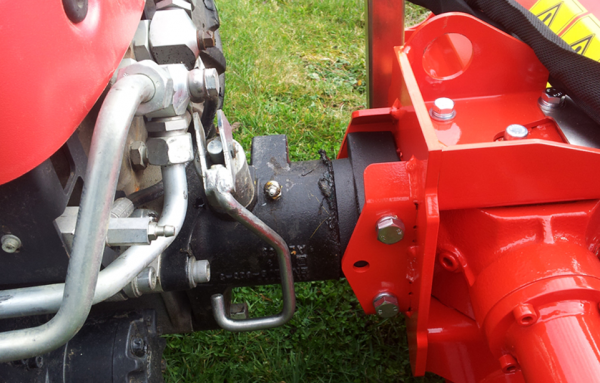

Hitch

Agria, Ferrari, Goldoni, Grillo, Nibbi

Number of blades

16

Number of screening rods

24

Outside rotor diameter

400mm

Security

Hydraulic clutch

Working Depth

140 mm
