STONY 115

A Stone Burier for Micro-tractors

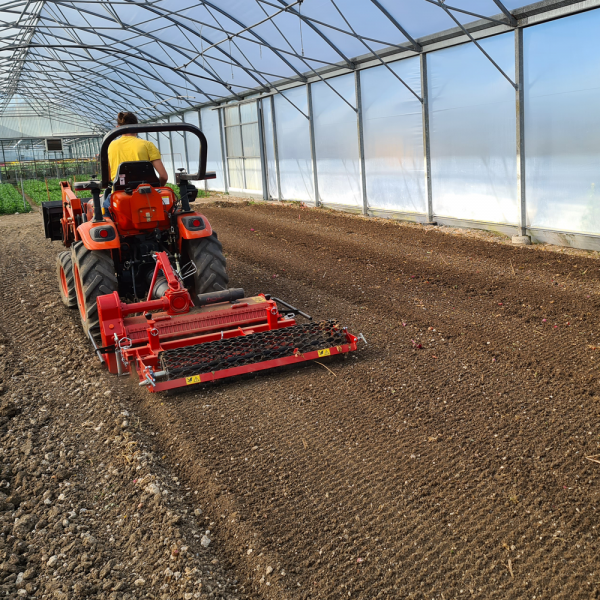

This soil preparer and burier is designed for use with micro-tractors. It enables the creation or renovation of green spaces by preparing the seedbed before sodding. The machine is multi-purpose, allowing for milling, burying (stones, rubbish, grass, etc.), leveling, mixing, and rolling the surface. It can be used directly or on ground that has been previously decompacted in depth and cleared of large stones.

Oversized Rotor
Anti-shoe blades (Rotadairon® patent)
Selection Grid Fingers
Torque limiter in oil bath at the end of the Rotor
Grader Blade

Options

Rear mesh roller side adjustment feature, by cylinder
Stainless Steel Splice Seeder: (SMC 100)

Additional information

Additional information

Overall Width	1520mm (59'' 3/4)
Working Width	1100mm (43'' 1/4)
Weight	340 Kg
Transmission	Angle gearbox and oil bath chains
3 Point Hitch	Category 1 & 2
Number of blades	24
Gap between knives	22mm (7/8'')
Outside rotor diameter	400mm
Working Depth	140mm (5'' 1/2)
Rear roller type	4 position adjustable rear roller height
Transport dimension (mm)	1520 x 1625 x 845 (59'' 3/4 x 64'' x 33'' 1/4)
PTO shaft rotation speed	540 RPM
Required Power	20-25 HP
