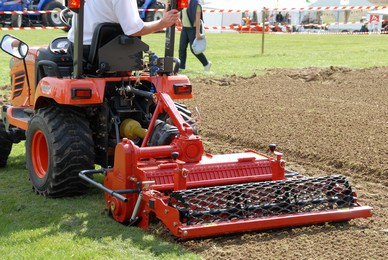

STONY 90

A Small Stone Burier for Micro-tractors

This soil preparer and burier enables the creation or renovation of green spaces by preparing the seedbed before sodding. The machine is multi-purpose, allowing for milling, burying (stones, rubbish, grass, etc.), leveling, mixing, and rolling the surface. It can be used directly or on ground that has been previously decompacted in depth and cleared of large stones.

  • Oversized Rotor
  • Anti-shoe blades (Rotadairon® patent)
  • Selection Grid Fingers
  • Torque limiter in oil bath at the end of the Rotor
  • Grader Blade

The STONY range of soil renovators can also be used in overgrowth (subject to conditions) or on previously and deeply loosened soil that has been cleared of larger rocks.

Options

  • Rear mesh roller side adjustment feature, by cylinder
  • Stainless Steel Splice Seeder: (SMC 100)
Category: Tag: Product ID: 151

Additional information

Height

860mm

Length

1340mm

Weight

295kg

Width

1250mm

3 Point Hitch

Category 1 & 2

PTO shaft rotation speed

540 RPM

Required Power

18 to 25 HP

Transmission

Chain with Hydraulic Clutch

Working Width

900 mm (35"1/2)

Depth control

Roller frame multi-positions

Number of blades

20

Number of screening rods

31

Outside rotor diameter

400mm

Working Depth

140 mm
