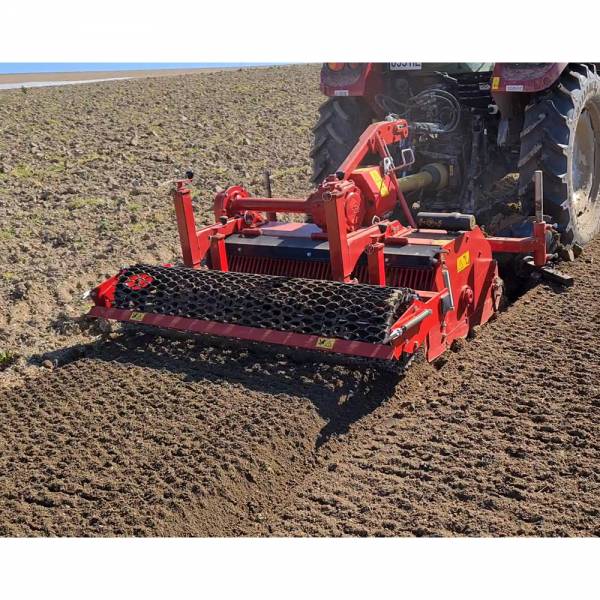

TR 150

A Preparer and Burier for Seedbeds or Plantations

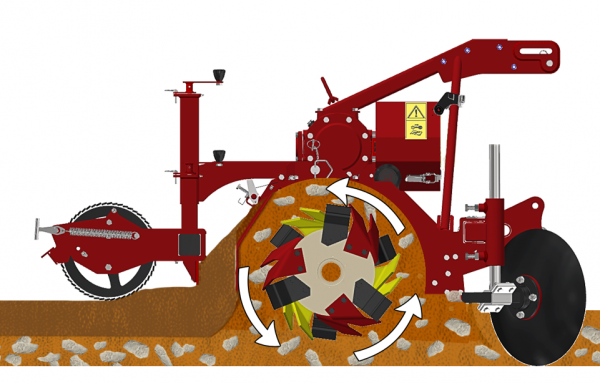

The TERRAGRO (TR range) was developed in collaboration with professionals in the horticulture and market gardening sector. The TR is the ideal preparer and stone burrier for seed beds or plantations, be that beds or in shapes. It works the sanitised surface of the soil and respects its agronomic structure. The oversized counter-rotating rotor throws stones, plant waste and earth against the selection grid, and, by densimetry, deposits the coarse elements which are then covered with fine earth. Resulting in beds that have a perfect homogeneity of density which suits a more grouped germination of the seeds and a faster recovery of the plants. The TERRAGRO can work in all types of soil (sand, clay, silt, pebbles) while ensuring the best quality of preparation.

  • Oversized Rotor
  • Anti-shoe blades (Rotadairon® patent)
  • Selection Grid Fingers
  • Torque limiter with dry-friction and flywheel
  • Working depth adjustment
  • Grader Blade

Options:

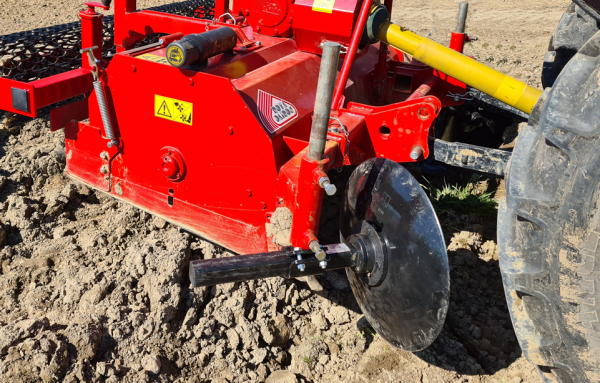

  • Front Discs
Category: Tag: Product ID: 197

Additional information

Overall Width

1880mm (70'' 4/5)

Weight

850kg

Working Width

1500mm (59")

Working Depth

160mm

3 Point Hitch

Category 1 & 2

PTO shaft rotation speed

540 RPM

Required Power

45-70 HP

Transmission

Angle gearbox and oil bath chains

Depth control

Screw Jacks System

Number of blades

48

Outside rotor diameter

400mm
