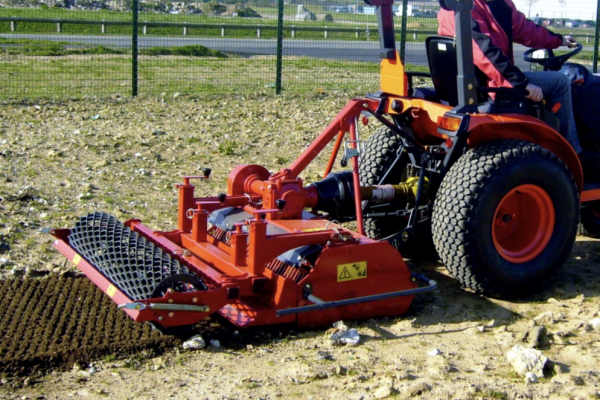

RD 145

This soil preparer and burier is best suited for compact tractors. It allows the creation or renovation of green spaces by preparing the seedbed before sodding. The machine is multi-purpose, it allows milling, burying (stones, rubbish, grass, etc.), leveling, mixing and rolling the surface. It can be used directly or on ground that has been previously decompacted in depth and cleared of large stones. Features include:

  • Oversized Rotor
  • Anti-shoe blades (Rotadairon® patent)
  • Selection Grid Fingers
  • Torque limiter in oil bath at the end of the Rotor
  • Working depth adjustment
  • Grader Blade
Category: Tag: Product ID: 157

Additional information

Height

1065mm

Length

1920mm

Width

1570mm

3 Point Hitch

Category 1 & 2

PTO shaft rotation speed

540 RPM

Required Power

30-50 HP

Transmission

Chain with Dry Clutch

Working Width

1500mm

Depth control

Screw Jacks System

Number of blades

48

Outside rotor diameter

400mm

Working Depth

140 mm

Weight - Mesh Roller

515kg

Overall Width

2005mm
