RDL 150

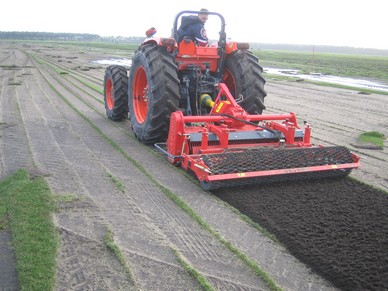

This soil preparer and burier is intended for micro-tractors. It allows the creation or renovation of green spaces by preparing the seedbed before sodding. The machine is multi-purpose, it allows milling, burying (stones, rubbish, grass, etc.), leveling, mixing and rolling the surface. It can be used directly or on ground that has been previously decompacted in depth and cleared of large stones. Features include:

  • Oversized Rotor
  • Anti-shoe blades (Rotadairon® patent)
  • Selection grid fingers
  • Torque limiter in oil bath at the end of the Rotor
  • Working depth adjustment
  • Grader blade

Additional information

Height

1100mm

Length

1800mm

Width

1960mm

3 Point Hitch

Category 1 & 2

PTO shaft rotation speed

540 RPM

Required Power

45-60 HP

Transmission

Chain with Dry Clutch

Working Width

1500mm

Depth control

Screw Jacks System

Number of blades

48

Number of grate fingers

49

Outside rotor diameter

400mm

Working Depth

160mm

Weight - Mesh Roller

760kg

Weight - Packer roller

910kg

Overall Width

1960mm
