RDL 200

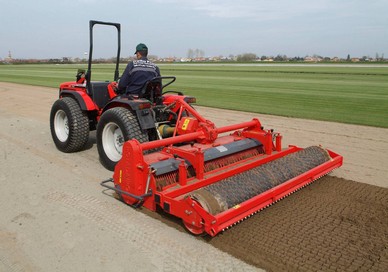

This soil preparer and burier is designed for use with micro-tractors. It enables the creation or renovation of green spaces by preparing the seedbed before sodding. The machine is multi-purpose, allowing for milling, burying (stones, rubbish, grass, etc.), leveling, mixing, and rolling the surface. It can be used directly or on ground that has been previously decompacted in depth and cleared of large stones. Features include:

  • Oversized Rotor
  • Anti-shoe blades (Rotadairon® patent)
  • Selection Grid Fingers
  • Torque limiter with dry-friction and flywheel
  • Working depth adjustment
  • Grader Blade

Additional information

Height

1100mm

Length

1800mm

Width

2400mm

3 Point Hitch

Category 1 & 2

PTO shaft rotation speed

540 RPM

Required Power

55-80 HP

Transmission

Chain with Dry Clutch

Working Width

2000mm

Depth control

Screw Jacks System

Number of blades

60

Number of grate fingers

66

Outside rotor diameter

400mm

Working Depth

160mm

Weight - Mesh Roller

950kg

Weight - Packer roller

1150kg

Overall Width

2400mm
