RDH 52

Stone burier for hydraulic loader

This soil preparer and buryer is intended for hydraulic compact loaders. There are two hitching versions of the machine:

  • Bobcat type hitch plate: RDH 52
  • Adaptable to your carrier by you: delivered without coupling plate, without hoses, without couplers: RDH 52 ADAPT

It allows the creation or renovation of green spaces by preparing the seedbed before sodding. The machine is multi-purpose, it allows milling, burying (stones, rubbish, grass, etc.), leveling, mixing and rolling the surface. The use is done directly or on ground previously decompacted in depth and cleared of large stones.

  • Oversized rotor
  • Anti-shoe blades (Rotadairon® patent)
  • Selection grid fingers

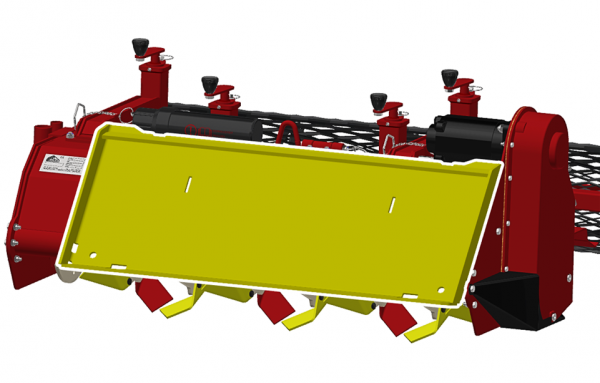

  • Conventional quick hitch system
  • Working depth adjustment
  • Grader blade
Category: Tag: Product ID: 189

Additional information

PTO shaft rotation speed

540 RPM

Required Power

70-90 HP


Hydraulic Motor

Working Width

1300 mm 52"

Depth control

Screw Jacks System

Number of blades

28, Mechanical

Outside rotor diameter


Working Depth


Overall Width


Number of grate fingers


Number of screening rods




Transport dimension (mm)

850 mm x 1650 mm x 1700 mm


Quick attach plate
